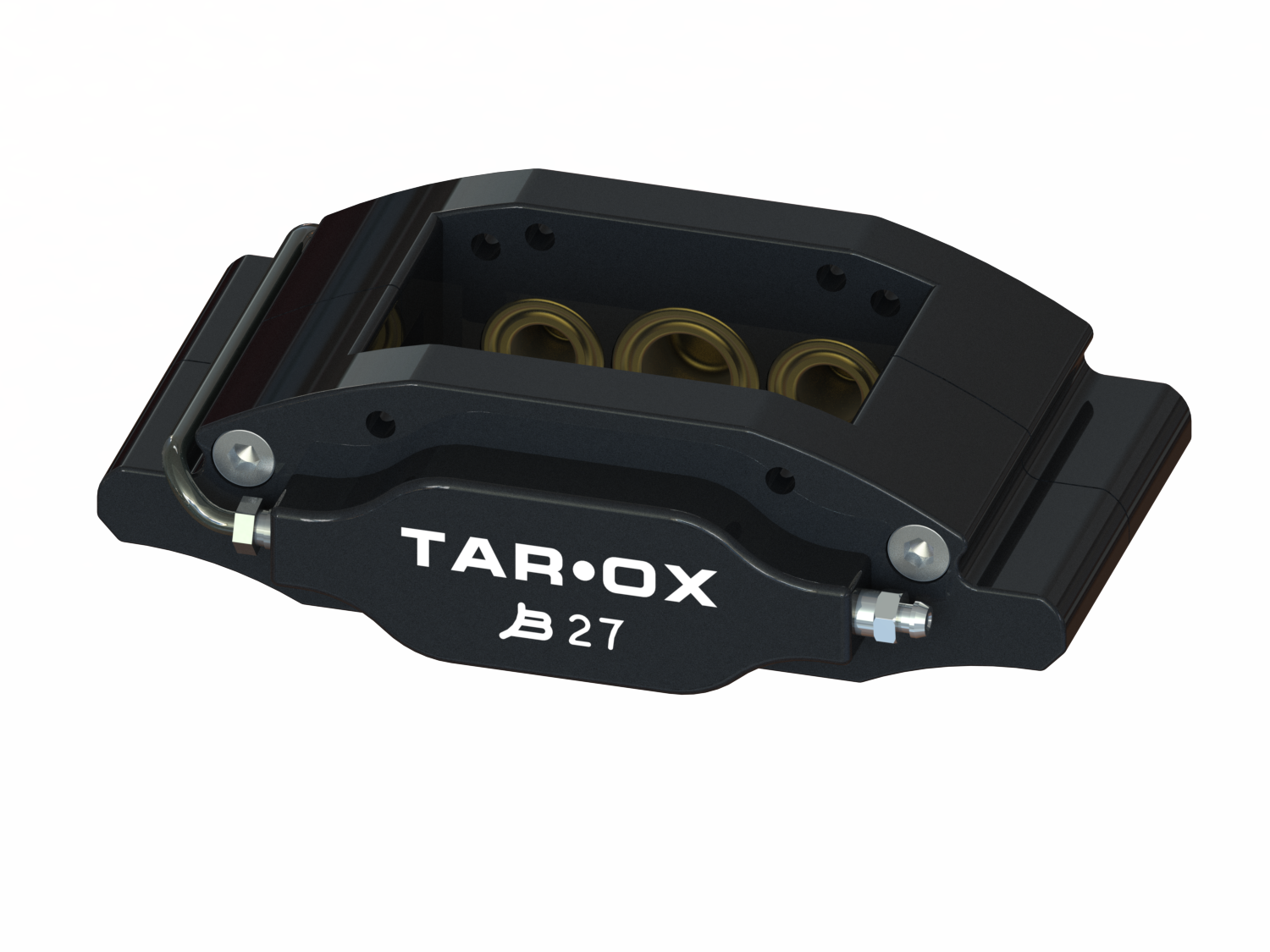

B27-6
B27-6
- September 12, 2016
0
Summary
- For street and racing use
- Maximum weight 1050kg (2300lbs)
- Made from solid alloy billet
- Multi piston seals allow for low maintenance
- Hard satin black anodized
Recommended for
- Light formula cars
- Street brake conversion kit
- Rear applications (smaller piston version)
Technical data
| Piston number | 6 |
| Rotor Ø (min-max) | 260-276mm (10.2-10.9″) |
| Rotor thickness (min-max) | 8-26mm |
| Rotor Depth | 45mm |
| Weight | 1.5kg (3lbs 4oz) |
| Mounting Type | Lug |
| Lug PCD | N/A |
| Anti knock-back Pistons | Optional |
| Mounting Centers | 56mm |
| Notes | |
| Piston Layout (Diameter in mm) | 26 / 31 / 26 |
| Total area (both sides) cm² | 363 |
| Pad Code | SP0153M |
| Pad Area cm² | 43 |
| Pad Choice | .112/.113/.114/.116 |
| Pad Thickness | 15mm |
| Pad Depth | 45mm |
