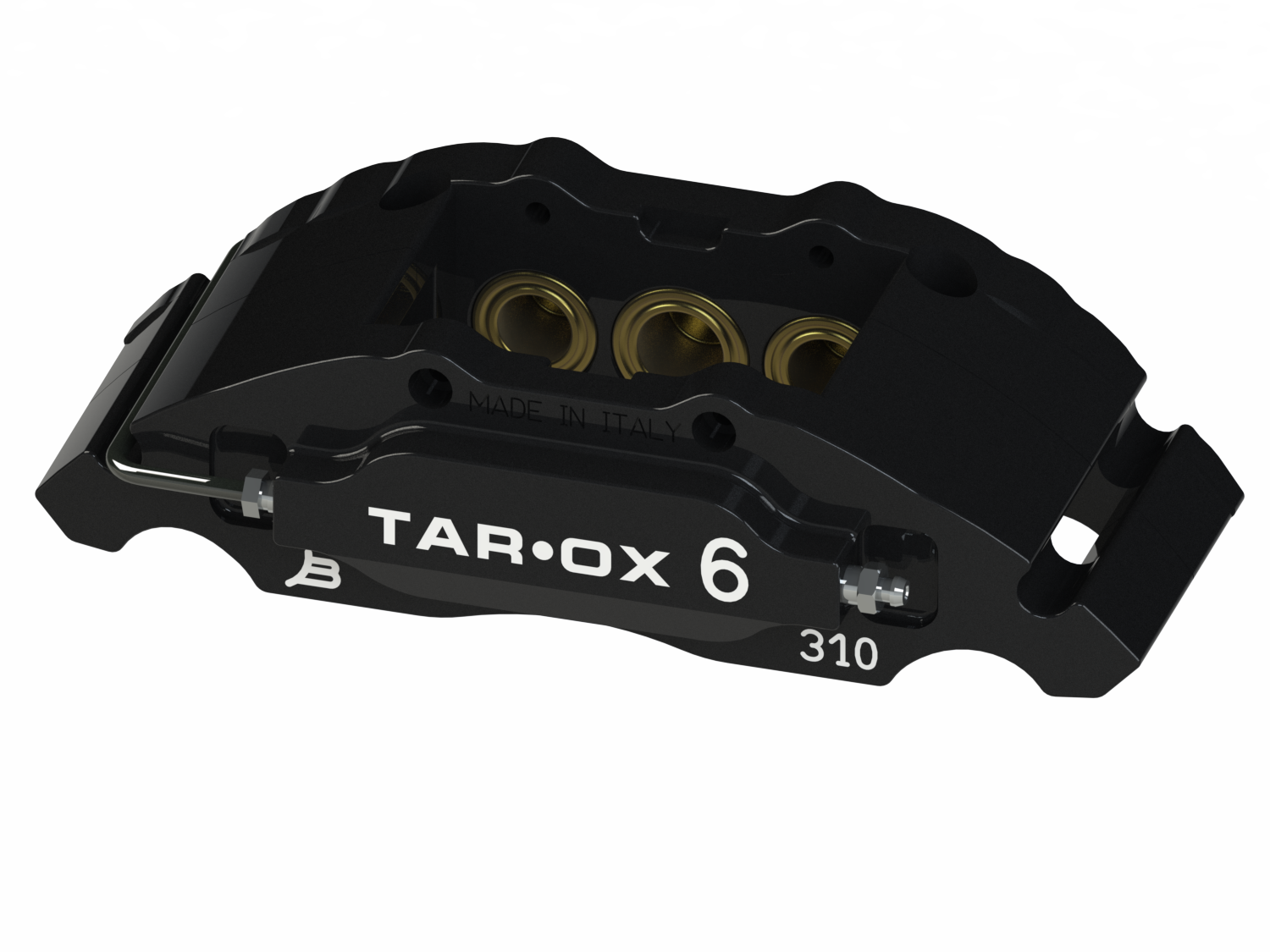

B310-6
B310-6
- September 21, 2016
0
Summary
- For racing and street use
- For rotors 55mm/2.2″ deep
- Made from solid alloy billet
- Multi piston seals allow for low maintenance
- Hard satin black anodized
Recommended for
- Formula cars
- Street brake conversion kits
- Rally cars
Technical data
| Piston number | 6 |
| Rotor Ø (min-max) | 290-310mm (11.4-12.2″) |
| Rotor thickness (min-max) | 10-32mm |
| Rotor Depth | 55mm |
| Weight | 2.4kg (5lb 5oz) |
| Mounting Type | Radial |
| Lug offset (min-max) | – |
| Lug PCD | – |
| Anti knock-back Pistons | Optional |
| Mounting Centers | 130mm |
| Notes | |
| Piston Layout (Diameter in mm) | 31 / 34 / 31 |
| Total area (both sides) mm² | 483 |
| Pad Code | SP0331 |
| Pad Area cm² | 55 |
| Pad Choice | .114/.115/.116/.118 |
| Pad Thickness | 17mm |
| Pad Depth | 55mm |
