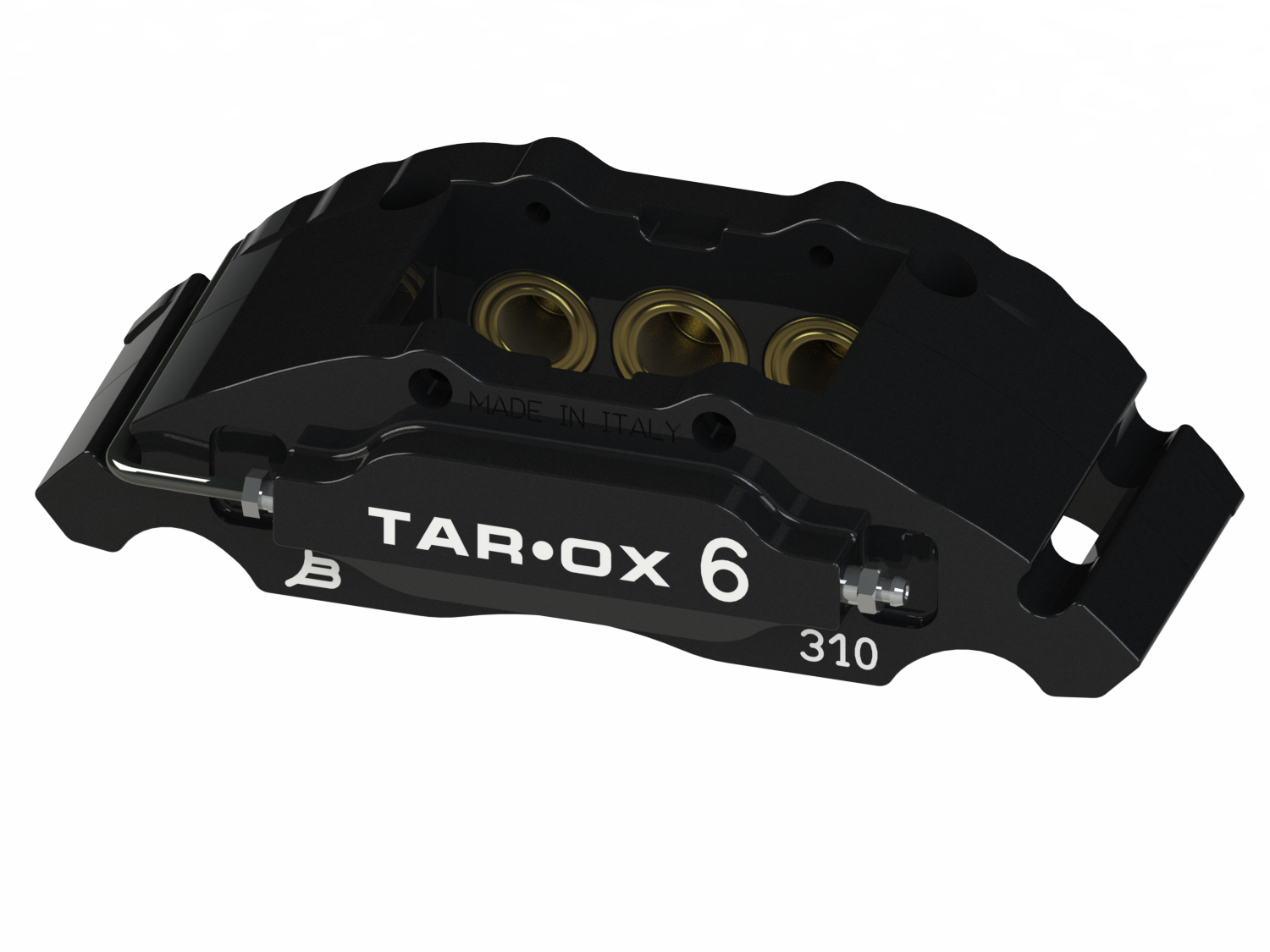

B310-6

admin
0

Summary

  • For racing and road use
  • For discs 55mm deep
  • Made from solid alloy billet
  • Multi piston seals allow for low maintenance
  • Hard satin black anodised

Recommended for

  • Formula cars
  • Road brake conversion kits
  • Rally cars

Technical data

Piston number 6
Disc Ø (min-max) 290-310mm
Disc thickness (min-max) 8-26mm
Disc Depth 55mm
Weight 2.4kg
Mounting Type Radial
Lug offset (min-max)
Lug PCD
Anti knock-back Pistons Optional
Mounting Centres 130mm
Notes
Piston Layout (Diameter in mm) 31 / 34 / 31
Total area (both sides) mm² 4835
Pad Code SP0331
Pad Area cm² 55
Pad Choice .114/.115/.116/.118
Pad Thickness 17mm
Pad Depth 55mm

View Technical Drawing
